概述

Summary

該準備可實現車轱轆輪輞端向和徑向的上下跳動測量，為知足測量音樂節奏懇請，夾緊平臺、頂升平臺、壓緊平臺均容忍液壓履行合同pcb板，得以實現了小車轱轆輞的急速夾緊與地位。This equipment can realize test for radical run-out and axial run-out of wheel rim. To satisfy requirement to test tact, the clamping device, jacking device and pressing device all use pneumatic actuator, which can clamp and locate rim quickly.

工件從上一工序到達本工序，傳遞到預約地位,檢測開關檢測到工件,夾緊機構將工件送到檢測地位下方，頂升夾緊機構將工件頂起并夾緊定位，壓緊機構將工件壓緊，伺服機電扭轉動員工件扭轉，檢測機構檢測工件，檢測終了后及格產物經由進程傳遞機構傳遞到下一工序，對不及格產物可經由進程前面的分選機構分選。

The workpiece from last process of fitting-press machine to this process will be conveyed to the appointed position, workpiece will be detected by detecting switch and will be conveyed below detection position by clamping device. The jacking device will jack workpiece up, clamp it and locate. Pressing device will press the workpiece. Servo motor rotates to drive workpiece rotation. The testing device will test workpiece. After test the qualified product will be conveyed to next process by transmission device, and the unqualified one will be selected out by the selecting mechanism.

該輔助裝備完整了過程中的會去主動化與加測數據資料的可視化效果，發往沒變年產量、持續發展品級、下跌耗損、提高效率采用的方向。This equipment realizes automatically production process and visual testing data. It achieved target of constant production, quality improvement, consumption reduction and high efficiency and pragmatic function.

規格參數

Specification

武器形號	Model Number	JCJ13-18AH
輸電電壓值	Power Supply	AC 380V, 3phase, 50Hz
輪輞最好長度	Rim Max. Width	290mm
輪輞最窄高寬比	Rim Mini. Width	120mm
收縮學習氛圍	Compressed Air Pressure	0.4~0.6Mpa
輪輞至少截面積	Rim Mini. Diameter	12 inches
輪輞很大的直徑	Rim Max. Diameter	18 inches
上面孔定位功能精準度	Position Accuracy of Centre Hole	0.03mm
絲杠本來徑跳gps精度	Radial Runout Accuracy of Spindle	0.03mm

裝備布局簡介

Equipment Structure Introduction

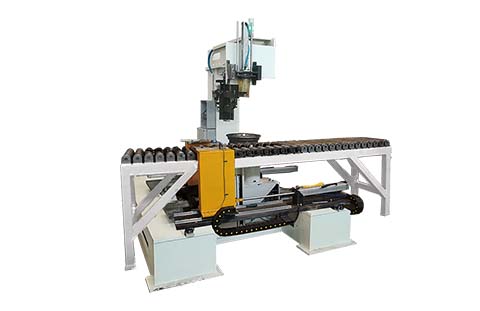

該游戲裝備收錄放肆系統、送料系統、監測系統和分選系統幾大小面積的；根本由1傳遞信息部門、2夾緊部門、3頂升位移部門、4壓緊部門、5監測加裝、6分選部門等包含；This equipment can be divided into four parts: control system, feeding system, testing system and selecting system. It mainly consists of transmission device (1), clamping device (2), jacking-rotating device (3), pressing device (4), testing device (5), selecting device (6), etc., shown as below pictures.可結束自主上料功能部門同產出線毗連，該法寶能自主將鋼件保研生到預約鉗臺，夾緊部門夾緊鋼件并保研生到檢驗區，頂升部門追蹤定位找正并將鋼件抬起、壓緊部門將鋼件壓緊、頂升屈曲部門出動鋼件屈曲，檢驗組裝優酷云檢驗。Its automatically feeding device can be connected with production line. This equipment can convey workpiece to the appointed processing position automatically. Clamping device grips workpiece and conveys it to testing part. Jacking device locates and lifts workpiece up. Pressing device presses workpiece, jacking-rotating drives workpiece to rotate and testing device will do the online testing operation.
